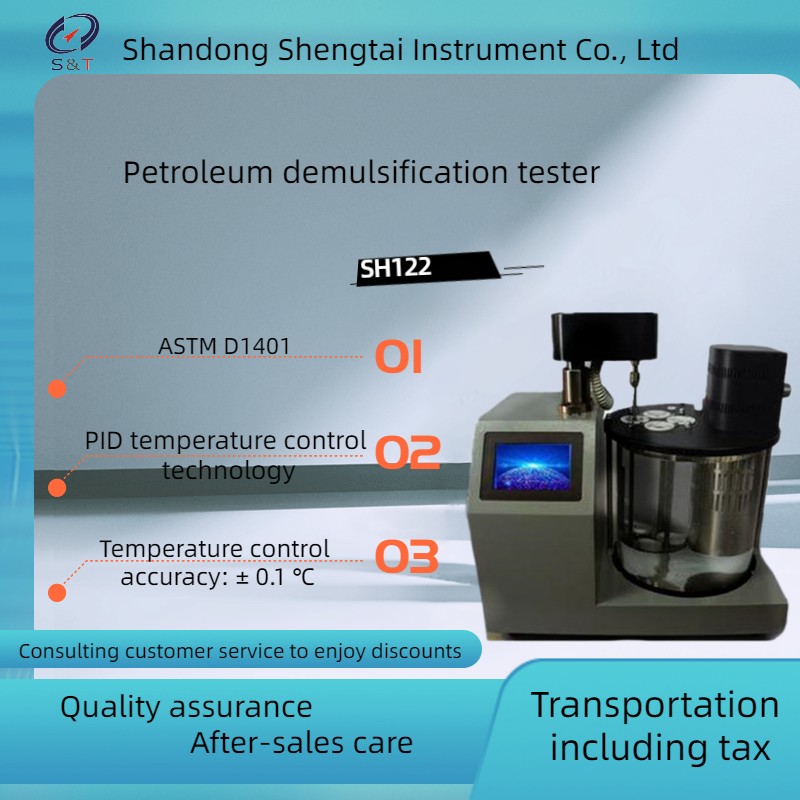

SH122 oil breaking anti-emulsification tester is used to determine the separation ability of petroleum synthetic liquid and water.
It is in line with GBT 7605-1987 for the determination of breaking emulsification degree of turbine oil in operation and GB-T 7305-2003 for the determination of water separation of petroleum and synthetic liquid. The constant temperature bath adopts small cylinder block, which is easy to operate, accurate to measure and beautiful in appearance design. It is a new type of instrument introduced in China.
The instrument features
1, Adopt 5 inch high-definition color touch screen, interface display clear, easy to operate.
2. The instrument can separate 4 samples simultaneously.
3, Adopt PID temperature control technology, high temperature control precision.
4. Automatic lifting of mixing device;
Mechanical transmission is noiseless, stable and reliable.
5, Adopt imported PT100 temperature sensor, high accuracy of temperature measurement.
6. Parameters such as temperature control value and fine-tuning temperature can be set. After setting, the instrument can be saved.
7, can save 500 historical records, easy to consult.
8, the instrument is small in size, light in weight, beautiful and delicate.
Technical indicators:
|
Temperature range |
adjustable within room temperature to 150oC |
|
Sample hole |
4 |
|
Temperature accuracy |
±0.5oC |
|
Timing range |
0 ~ 99 minutes arbitrary setting |
|
Power supply voltage |
AC220V±10% |
|
Frequency |
50Hz ±5% |
|
Instrument size: 480 * 300 * 530mm weight:24kg |
|
|
Package size: 550 * 380 * 550mm weight:28kg |
|
Packing list
|
S/N |
Name |
Quantity |
Unit |
Remarks |
|
1 |
Host |
1 |
set |
|
|
2 |
Temperature sensor |
1 |
piece |
|
|
3 |
Test tube |
4 |
piece |
|
|
4 |
power cord |
1 |
piece |
|
|
5 |
Fuse tube |
1 |
piece |
10A |
|
6 |
Instructions |
1 |
copy |
|
|
7 |
Packing list
|
1 |
copy |
|
|
8 |
Certificate warranty card |
1 |
copy |
|
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
